Product Name:
Corrosion inhibitor graphite packing
Details :

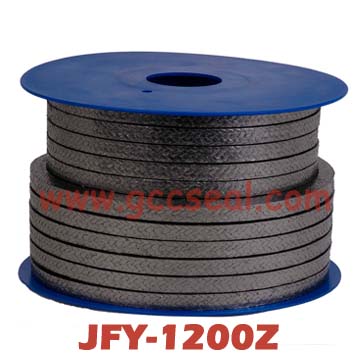

JFY-1200Z Corrosion inhibitor graphite packing



Description:

Compared with other series of graphite packing, it has the similar performance. But the corrosion inhibitor acts as a sacrificial anode to protect the valve stem and the stuffing box. This packing does not score the shaft and the shaft and minimizes sleeve replacement cost.



Application areas:

It is the ideal choice for high temperature rotary slurry service, such as rotary shafts of pumps, agitators, mixters, crystallizers, filters, continuous digesters, etc.



Application media:

It covers a pH range from 0~14 and can be used with water, brine, steam, acids, lyes, chemicals, solvents, liquors, oils and greases, etc.



Technical data:





Rotating

Reciprocating

Valves

Pressure

3 Mpa

10 Mpa

20 Mpa

Shaft speed:

20 m/s rotary

Temperature

-200鈩僼o +455鈩僡tmosphere; to +650鈩僫n steam

PH range

0~14

Other reinforced materials are also available.



Package:

5kg/roll, 10kg/roll.

Supply OEM products.
